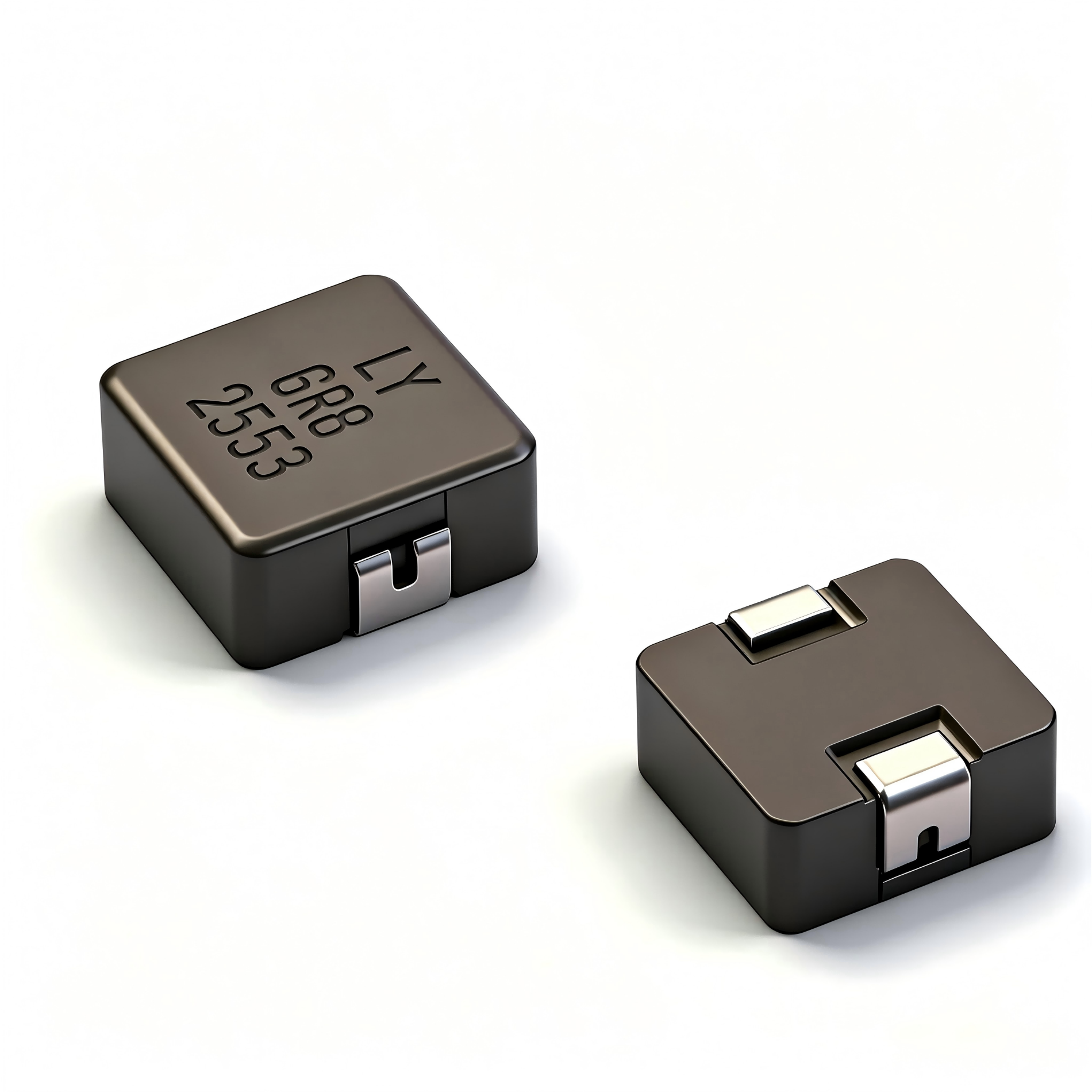

Shielded construction
Capable of corresponding high frequency.
Low loss realized with low DCR.
High performance (Isat) realized by metal dust core.
Ultra low buzz noise, due to composite construction.
AEC-Q200 qualified.
Operating temperature: -55 to +155 ℃ (including self-temperature rise)
产品系列
Inductance.(μH)
DC Resistance max.(mΩ)
DC Resistance typ.(mΩ)
Saturation Current max.(A)
Saturation Current typ.(A)
Heat Rating Current max.(A)
Heat Rating Current typ.(A)
工作温度(℃)
长(mm)
宽(mm)
高(mm)
查看
0.10 ~8.20
11.0 ~95.0
11.6 ~97.0
1.12 ~8.00
1.4 ~9.0
0.90 ~9.00
1.20 ~9.00
-55~155
4.45±0.25
4.1±0.20
1.8±0.20
0.20 ~6.80
103~9.20
10.5~88.0
1.70 ~9.00
10.0 ~9.00
11.0 ~9.00
10.0 ~9.00
-55~155
5.7±0.30
5.2±0.20
2.8±0.20
0.15~8.20
12.1~9.50
1.70 ~7.70
1.60 ~9.00
10.0 ~9.50
1.20 ~9.50
1.50 ~8.00
-55~155
7.1±0.30
6.6±0.20
2.8±0.20
1.00 ~8.20
11.5~85.0
10.0 ~73.0
1.50 ~8.50
1.80 ~9.50
11.0 ~9.50
10.0 ~9.00
-55~155
7.3±0.30
6.6±0.30
4.80±0.20
0.15~8.20
0.60 ~91.0
0.50 ~84.0
11.0 ~8.50
12.2~9.50
10.0 ~8.00
11.0 ~8.80
-55~155
11.0±0.30
10.0±0.30
3.80±0.20
0.36~8.20
0.92 ~9.10
0.82~9.30
11.0 ~7.50
13.0 ~8.50
10.0 ~8.50
10.0 ~7.60
-55~155
11.0±0.50
10.0±0.30
4.80±0.20
0.22~68.0
0.61~94.0
0.50 ~95.0
10.5~9.20
11.0 ~8.50
11.0 ~9.00
10.0 ~9.40
-55~155
13.5±0.50
12.6±0.20
4.70±0.30
0.36~8.20
0.80 ~88.0
0.65 ~76.0
14.5~9.00
10.0 ~9.00
10.5 ~8.50
10.0 ~8.00
-55~155
13.5±0.50
12.6±0.20
5.70±0.30
0.47~8.20
1.02~9.80
0.88~9.80
12.0 ~9.00
10.0 ~9.00
11.0 ~9.50
10.0 ~9.00
-55~155
13.5±0.50
12.6±0.20
6.20±0.30
0.47~82.0
0.90 ~83.0
0.70 ~9.20
10.0 ~8.00
110~9.5
10.0 ~8.00
12.0 ~9.50
-55~155
17.80±0.50
16.90±0.30
6.70±0.30
样品
申请
系列
型号
Inductance.(μH)
DC Resistance max.(mΩ)
DC Resistance typ.(mΩ)
Saturation Current max.(A)
Saturation Current typ.(A)
Heat Rating Current max.(A)
Heat Rating Current typ.(A)
工作温度(℃)
长(mm)
宽(mm)
高(mm)
封装
屏蔽
AEC等级
