Part No.型号
Inductance.(μH)电感量
DCR;max.直流电阻(Ω)
Isat;max.饱和电流(A)
Rated Current;max.额定电流(A)
TOP 工作温度(℃)
Length长(mm)
Width宽(mm)
Heiht高(mm)
Footprint 封装
Shield屏蔽
AEC等级

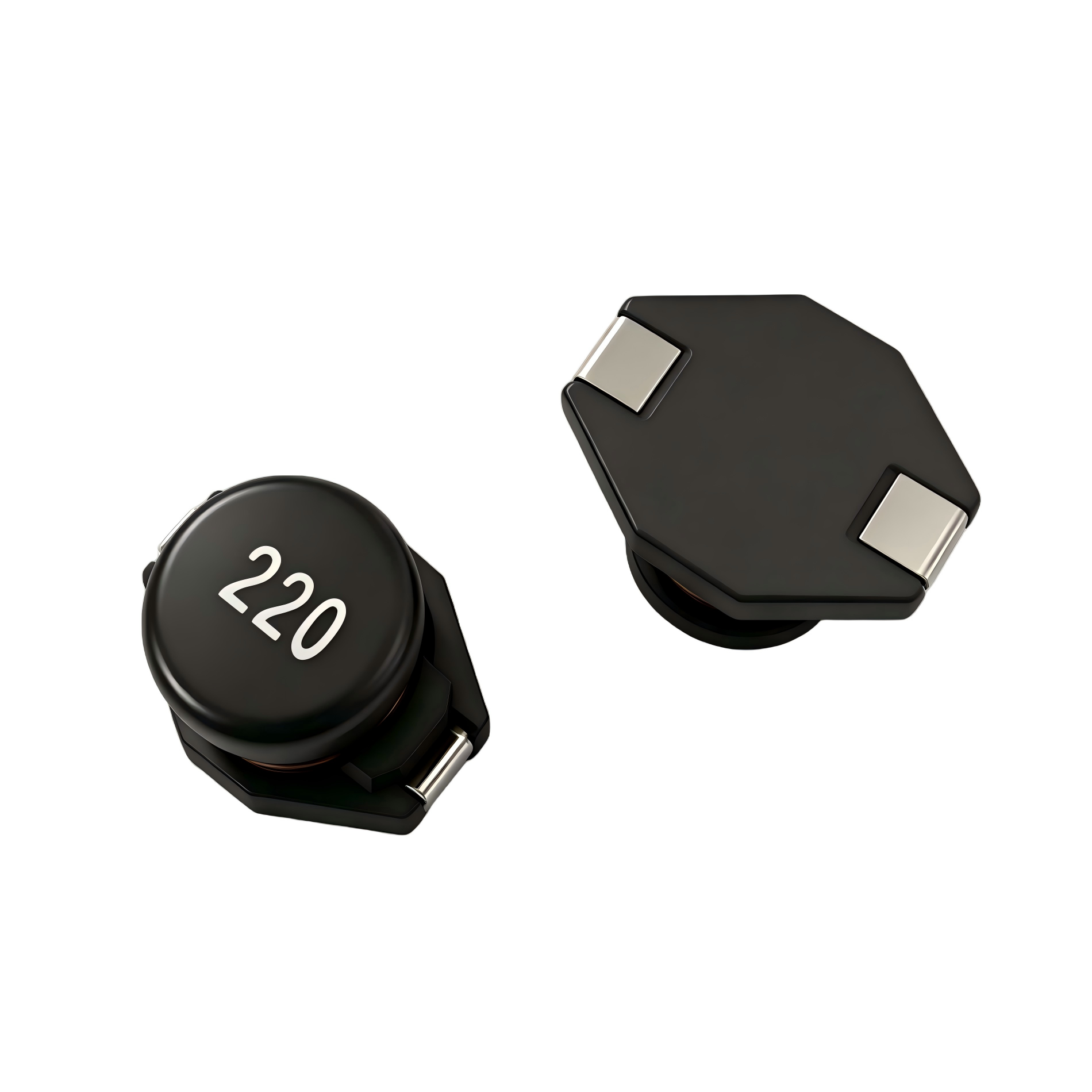

ESSL0810T-100M-N
10.00
0.033
8.0
3.50
-40~125
12.95typ.
9.4typ.
11.43typ.
SMD
Y
N
ESSL0810T-150M-N
15.00
0.042
7.0
3.00
-40~125
12.95typ.
9.4typ.
11.43typ.
SMD
Y
N
ESSL0810T-220M-N
22.00
0.054
5.5
2.50
-40~125
12.95typ.
9.4typ.
11.43typ.
SMD
Y
N
ESSL0810T-330M-N
33.00
0.080
4.0
2.00
-40~125
12.95typ.
9.4typ.
11.43typ.
SMD
Y
N
ESSL0810T-470M-N
47.00
0.100
3.8
1.60
-40~125
12.95typ.
9.4typ.
11.43typ.
SMD
Y
N
ESSL0810T-680M-N
68.00
0.170
3.0
1.20
-40~125
12.95typ.
9.4typ.
11.43typ.
SMD
Y
N
ESSL0810T-101M-N
100.0
0.220
2.5
1.20
-40~125
12.95typ.
9.4typ.
11.43typ.
SMD
Y
N
ESSL0810T-151M-N
150.0
0.340
2.0
0.90
-40~125
12.95typ.
9.4typ.
11.43typ.
SMD
Y
N
ESSL0810T-221M-N
220.0
0.440
1.6
0.70
-40~125
12.95typ.
9.4typ.
11.43typ.
SMD
Y
N
ESSL0810T-331M-N
330.0
0.700
1.2
0.60
-40~125
12.95typ.
9.4typ.
11.43typ.
SMD
Y
N
ESSL0810T-471M-N
470.0
0.950
1.0
0.30
-40~125
12.95typ.
9.4typ.
11.43typ.
SMD
Y
N
ESSL0810T-681M-N
680.0
1.200
1.0
0.20
-40~125
12.95typ.
9.4typ.
11.43typ.
SMD
Y
N
ESSL0810T-102M-N
1000
2.000
0.8
0.10
-40~125
12.95typ.
9.4typ.
11.43typ.
SMD
Y
N
