Part No.型号
Inductance.(μH)电感量
DCR;max.直流电阻(Ω)
Isat;max.饱和电流(A)
Rated Current;max.额定电流(A)
TOP 工作温度(℃)
Length长(mm)
Width宽(mm)
Heiht高(mm)
Footprint 封装
Shield屏蔽
AEC等级

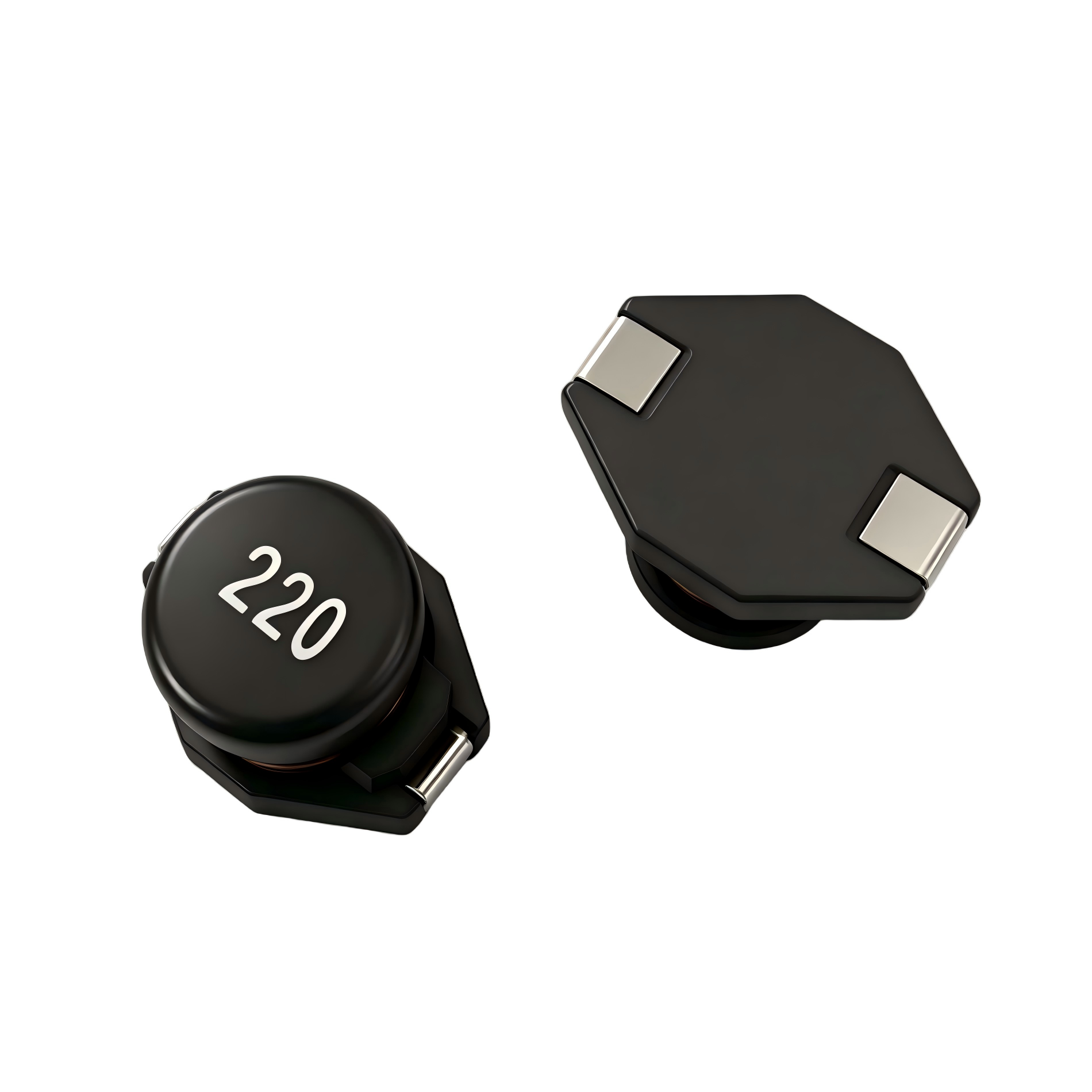

ESSL0804T-1R0M-N
1.000
0.009
9.0
6.80
-40~125
12.95typ.
9.4typ.
5.21typ.
SMD
Y
N
ESSL0804T-1R5M-N
1.500
0.010
8.0
6.40
-40~125
12.95typ.
9.4typ.
5.21typ.
SMD
Y
N
ESSL0804T-2R2M-N
2.200
0.012
7.0
6.10
-40~125
12.95typ.
9.4typ.
5.21typ.
SMD
Y
N
ESSL0804T-3R3M-N
3.300
0.015
6.4
5.40
-40~125
12.95typ.
9.4typ.
5.21typ.
SMD
Y
N
ESSL0804T-4R7M-N
4.700
0.018
5.4
4.80
-40~125
12.95typ.
9.4typ.
5.21typ.
SMD
Y
N
ESSL0804T-6R8M-N
6.800
0.027
4.6
4.40
-40~125
12.95typ.
9.4typ.
5.21typ.
SMD
Y
N
ESSL0804T-100M-N
10.00
0.038
3.8
3.90
-40~125
12.95typ.
9.4typ.
5.21typ.
SMD
Y
N
ESSL0804T-150M-N
15.00
0.046
3.0
3.10
-40~125
12.95typ.
9.4typ.
5.21typ.
SMD
Y
N
ESSL0804T-220M-N
22.00
0.085
2.6
2.70
-40~125
12.95typ.
9.4typ.
5.21typ.
SMD
Y
N
ESSL0804T-330M-N
33.00
0.100
2.0
2.10
-40~125
12.95typ.
9.4typ.
5.21typ.
SMD
Y
N
ESSL0804T-470M-N
47.00
0.140
1.6
1.80
-40~125
12.95typ.
9.4typ.
5.21typ.
SMD
Y
N
ESSL0804T-680M-N
68.00
0.200
1.4
1.50
-40~125
12.95typ.
9.4typ.
5.21typ.
SMD
Y
N
ESSL0804T-101M-N
100.0
0.260
1.2
1.30
-40~125
12.95typ.
9.4typ.
5.21typ.
SMD
Y
N
ESSL0804T-151M-N
150.0
0.400
1.0
1.00
-40~125
12.95typ.
9.4typ.
5.21typ.
SMD
Y
N
ESSL0804T-221M-N
220.0
0.610
0.8
0.80
-40~125
12.95typ.
9.4typ.
5.21typ.
SMD
Y
N
ESSL0804T-331M-N
330.0
1.020
0.6
0.60
-40~125
12.95typ.
9.4typ.
5.21typ.
SMD
Y
N
ESSL0804T-471M-N
470.0
1.270
0.5
0.50
-40~125
12.95typ.
9.4typ.
5.21typ.
SMD
Y
N
ESSL0804T-681M-N
680.0
2.020
0.4
0.40
-40~125
12.95typ.
9.4typ.
5.21typ.
SMD
Y
N
ESSL0804T-102M-N
1000
3.000
0.3
0.30
-40~125
12.95typ.
9.4typ.
5.21typ.
SMD
Y
N
