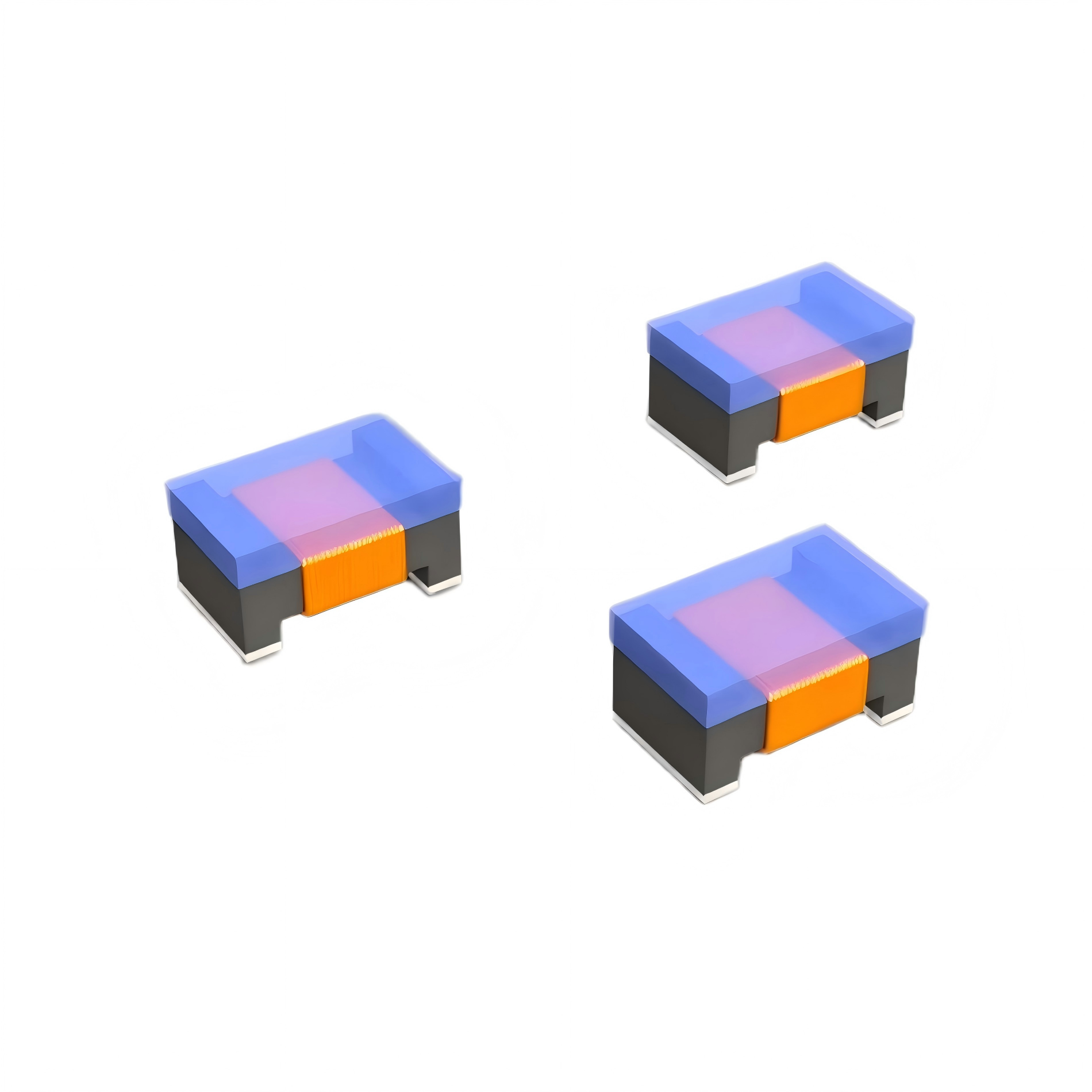

当前位置：首页 > 产品中心 > 工规 > Coils&Inductors 线圈&电感器 > Unshielded Wire wound Inductor 非遮蔽式绕线电感器 > ELS 铁氧体式绕线电感器
样品申请
Sample Request
Part No.型号
Inductance.(μH)电感量
Test Frequency.测试频率(MHz)
SRF;min. 自振频率(MHz)
DCR;max.直流电阻(Ω)
Isat;max.饱和电流(mA)
TOP 工作温度(℃)
Length长(mm)
Width宽(mm)
Heiht高(mm)
Footprint 封装
Shield屏蔽
AEC等级
ELS0402-78N¨-N
78.00
7.9
1600
0.130
970.0
-40~125
1.19max.
0.70max.
0.64max.
SMD
Y
N
ELS0402-R10¨-N
100.0
7.9
1400
0.160
900.0
-40~125
1.19max.
0.70max.
0.64max.
SMD
Y
N
ELS0402-R11¨-N
110.0
7.9
1000
0.200
850.0
-40~125
1.19max.
0.70max.
0.64max.
SMD
Y
N
ELS0402-R12¨-N
120.0
7.9
1000
0.200
850.0
-40~125
1.19max.
0.70max.
0.64max.
SMD
Y
N
ELS0402-R14¨-N
140.0
7.9
1220
0.260
630.0
-40~125
1.19max.
0.70max.
0.64max.
SMD
Y
N
ELS0402-R15¨-N
150.0
7.9
1220
0.260
630.0
-40~125
1.19max.
0.70max.
0.64max.
SMD
Y
N
ELS0402-R18¨-N
180.0
7.9
1150
0.280
560.0
-40~125
1.19max.
0.70max.
0.64max.
SMD
Y
N
ELS0402-R20¨-N
200.0
7.9
1000
0.440
400.0
-40~125
1.19max.
0.70max.
0.64max.
SMD
Y
N
ELS0402-R22¨-N
220.0
7.9
1150
0.530
380.0
-40~125
1.19max.
0.70max.
0.64max.
SMD
Y
N
ELS0402-R25¨-N
250.0
7.9
900.0
0.900
360.0
-40~125
1.19max.
0.70max.
0.64max.
SMD
Y
N
ELS0402-R27¨-N
270.0
7.9
860.0
0.900
360.0
-40~125
1.19max.
0.70max.
0.64max.
SMD
Y
N
ELS0402-R30¨-N
300.0
7.9
860.0
0.900
360.0
-40~125
1.19max.
0.70max.
0.64max.
SMD
Y
N
ELS0402-R36¨-N
360.0
7.9
810.0
0.900
250.0
-40~125
1.19max.
0.70max.
0.64max.
SMD
Y
N
ELS0402-R39¨-N
390.0
7.9
760.0
1.000
200.0
-40~125
1.19max.
0.70max.
0.64max.
SMD
Y
N
ELS0402-R47¨-N
470.0
7.9
650.0
1.000
200.0
-40~125
1.19max.
0.70max.
0.64max.
SMD
Y
N
ELS0402-R56¨-N
560.0
7.9
600.0
1.200
200.0
-40~125
1.19max.
0.70max.
0.64max.
SMD
Y
N
ELS0402-R82¨-N
820.0
7.9
385.0
5.850
90.00
-40~125
1.19max.
0.70max.
0.64max.
SMD
Y
N
ELS0402-1R0¨-N
1000
7.9
200.0
6.500
50.00
-40~125
1.19max.
0.70max.
0.64max.
SMD
Y
N
